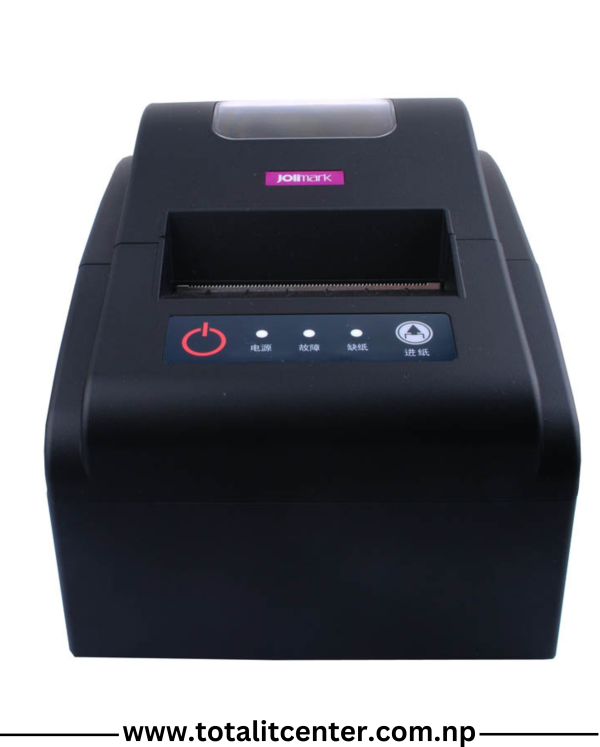

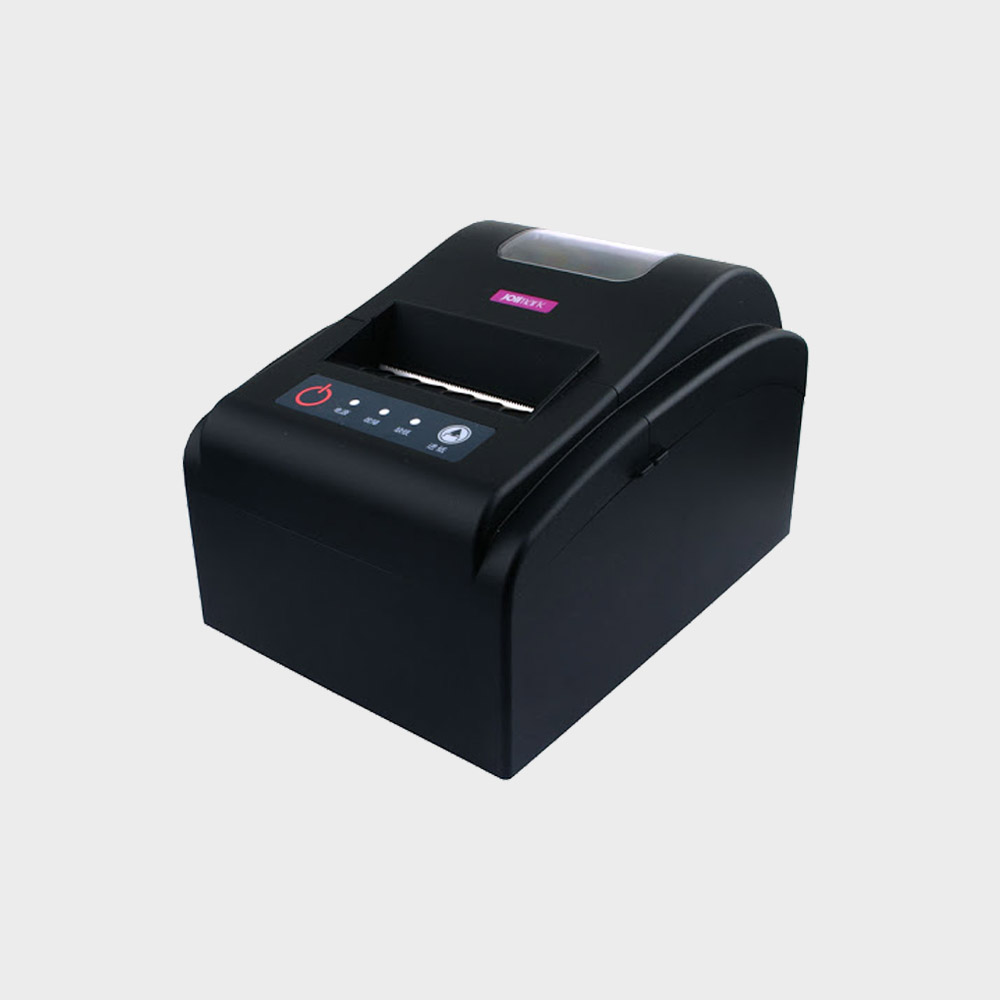

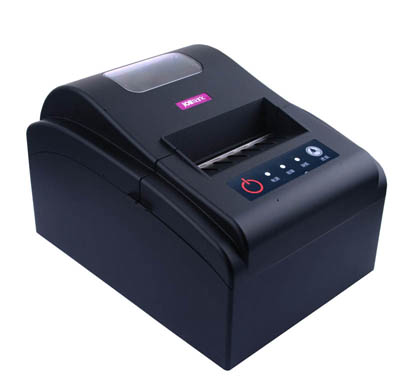

TP200 JOLIMARK DOT MATRIX PRINTER BEST QUALITY IN NEPAL

Original price was: ₨ 29,000.00.Current price is: ₨ 25,000.00.

model : jolimark tp200

brand : jolimark

warranty : 1year

Compare

Description

*Model Number: TP200
*Manufacturer: Jolimark

Printing method 9 Pins Dot matrix impact
Printing direction Bidirectional logic seeking
Diameter of wire 0.3 mm
Dot density 160×144DPI (maximum)
Print speed 4.6 lines per second (paper width 76 mm, 40 columns)
Copy Original + 2 copies
Effective printing width 63 mm (paper width 76 mm), 45 mm (paper width 57 mm)
Paper feed speed Max:135 mm/s
Line spacing Set by the increment of 1/6 inch or 1/144 inch
Control panel Touch keys operation, 2 keys and 3 LED indicators
Paper Specification Roll paper model Common single-sheet roll paper
Common two-sheet, trilogy roll copy paper
Width: 57.5 ±0.5 mm, 76 ±0.5 mm
Weight: 52.3 ~ 64.0 g/m2
Maximum diameter: 83 mm
Paper thickness: 0.06 ~ 0.20 mm
Character set ASCII character set, International character set
Ribbon Type: JMR112
Life: 3 million characters
Interface TP200P:-[Parallel]
TP200U:-[USB2.0]
TP200US:-[USB2.0]+[Serial]
TP200UE:-[USB2.0]+[Ethernet]
TP200B:-[Bluetooth
TP200W:-[W-Fi-]
TP200USE Serial+USB+Ethernet
Cash drawer interface  RJ-11, 24V(DC)/1A
Black mark Optional
Special function Touch keys, Online parameter settings, Software online upgrade
Input buffer 6KB
Control command ESC/POS Emulation
Character printing command: Support ANK characters, user-defined characters and enlarged printing of Chinese characters 1-2 times, can adjust character line spacing
Power Supply
(AC adapter)
Input Voltage: 100-240 V(AC)
Frequency: 50Hz/60Hz
Output Voltage: 24 V(DC)
Current: 2.5A
Power input  Parameters Input voltage:24 V(DC)
Input current: 2.5 A
Environmental conditions Operating environment Temperature: 5 ~ 35℃
Humidity: 25 ~ 80%RH (No condensation)
Storage environment Temperature: -40 ~ 55℃
Humidity: ≤93%RH (40℃, no condensation)
Weight Approx.1.2 Kg
Noise <58 dB (A) (SO7779 standard)
Physical dimensions 154 mm (width) × 210 mm (depth) × 132 mm (height)
Resolution Horizontal 420 dots per line (76±0.5 mm paper width)
300 dots per line (57.5±0.5 mm paper width)
Vertical: 144 DPI
Power consumption  Operating: 40 W
Standby: Approximately 1.5 W
